BBF

KSF/V-HE

DN 65 – DN 200 | PN 25

Full bore

Information

Ball Valve for one time operation / Tie-in ball valve
  • Operating temperature up to +150° C

  • The scope of delivery includes a cover for proper welding design according to AGFW worksheet FW401 (up to DN100).

  • The enclosed installation instructions must be observed!

  • Stem design with double o-ring seals

  • Underground ball valves are supplied unpainted as standard.


  • For nominal sizes up to and including DN 40 please use our Hot-tapping ball valves
  • Werkstoffe

    BodyForged steel / steel
    BallStainless Steel
    StemStainless Steel
    Ball sealsPTFE
    Stem sealsEPDM

    Optionen

  • For deviating operating conditions, please enquire in writing, stating medium, pressure and operating temperature.

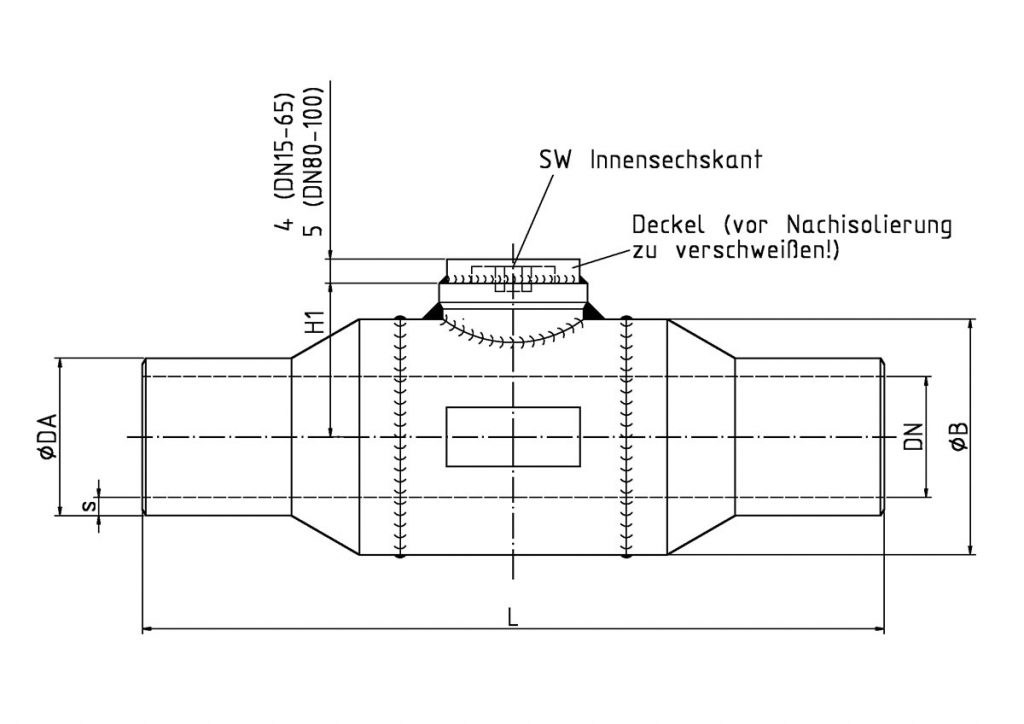

  • Werte, Maße & Gewichte

    DN [mm] PN [bar] Da [mm] s [mm] L [mm] B [mm] H1 [mm] SW 1 [mm] Gewicht [kg] Art.-Nr.
    65 25 76.1 3.6 270 121 77.5 10 7.9 010.1113
    80 25 88.9 4.0 280 140 100 12 9.7 010.1114
    100 25 114.3 4.0 300 171 114 12 14.8 010.1147
    1251 25 139.7 4.5 350 203 149 22 26.5 010.9215
    1501 25 168.3 5.0 400 254 188 32 49.5 010.6078
    2001 25 219.1 6.3 460 324 223 32 84.0 010.2914
