BBF

KSF/V-HS

DN 15 – DN 200 | PN 25

Full bore

Information

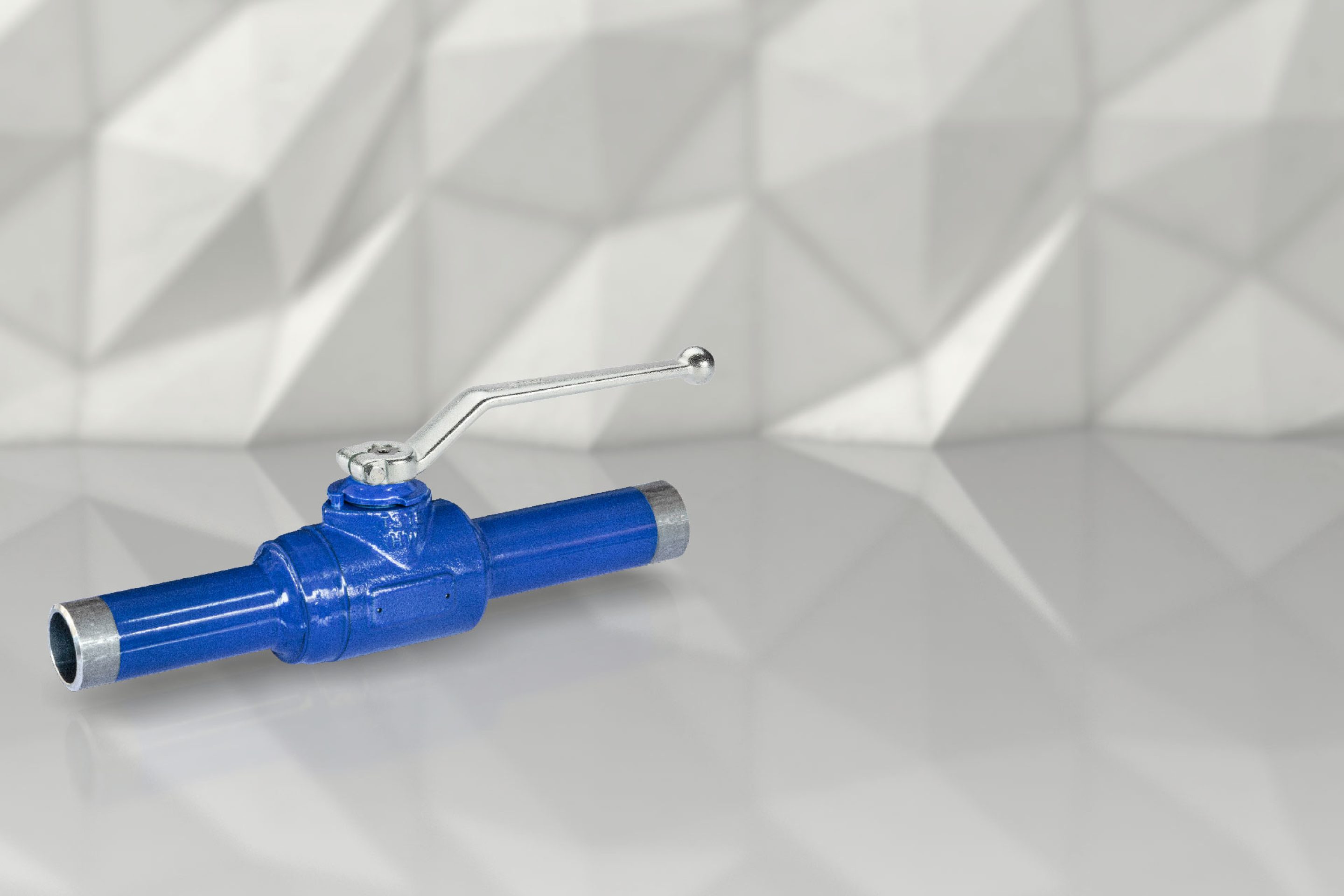

Ball Valve with Weld ends
/// Operating temperature up to +150° C
/// Hot water design
/// Not suitable for oxyfuel welding

Werkstoffe

BodySteel
BallStainless Steel
StemStainless Steel
Stem retainerBrass
Stem Seals2 O-Rings
O-RingsEPDM

Optionen

Werte, Maße & Gewichte

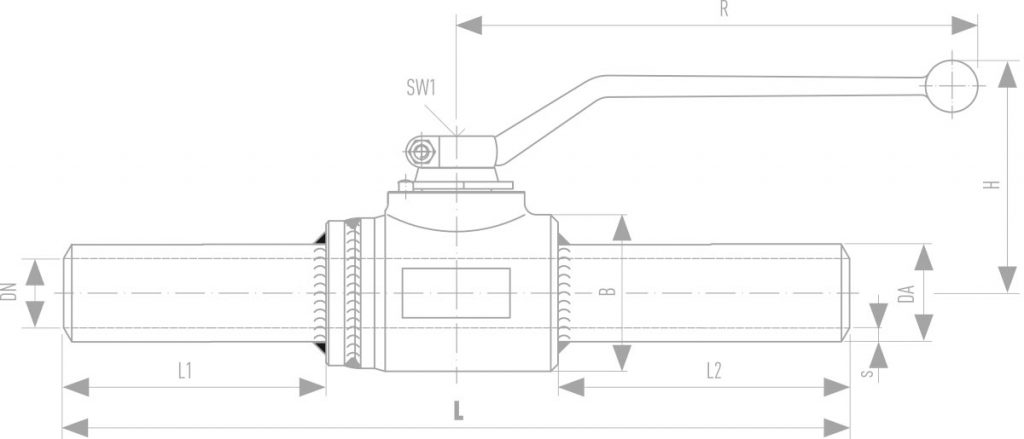

DN [mm] PN [bar] DA [mm] s [mm] L [mm] L1 [mm] L2 [mm] B [mm] H [mm] R [mm] SW 1 [mm] Gew. [kg] Art.-Nr.
10 25 17.2 2.3 270 102 102 66 130 10 0.9
15 25 21.3 2.6 270 97 97 68 130 10 1.0
20 25 26.9 3.2 270 97 97 70 130 10 1.3
25 25 33.7 3.2 270 90 90 82 180 12 1.7
32 25 42.4 3.2 270 95 95 110 205 16 2.6
40 25 48.3 3.2 270 90 90 115 205 16 3.3
