BBF

KSF/R-HE

DN 40 – DN 150 | PN 25

reduced bore
Download Datenblatt    >

Information

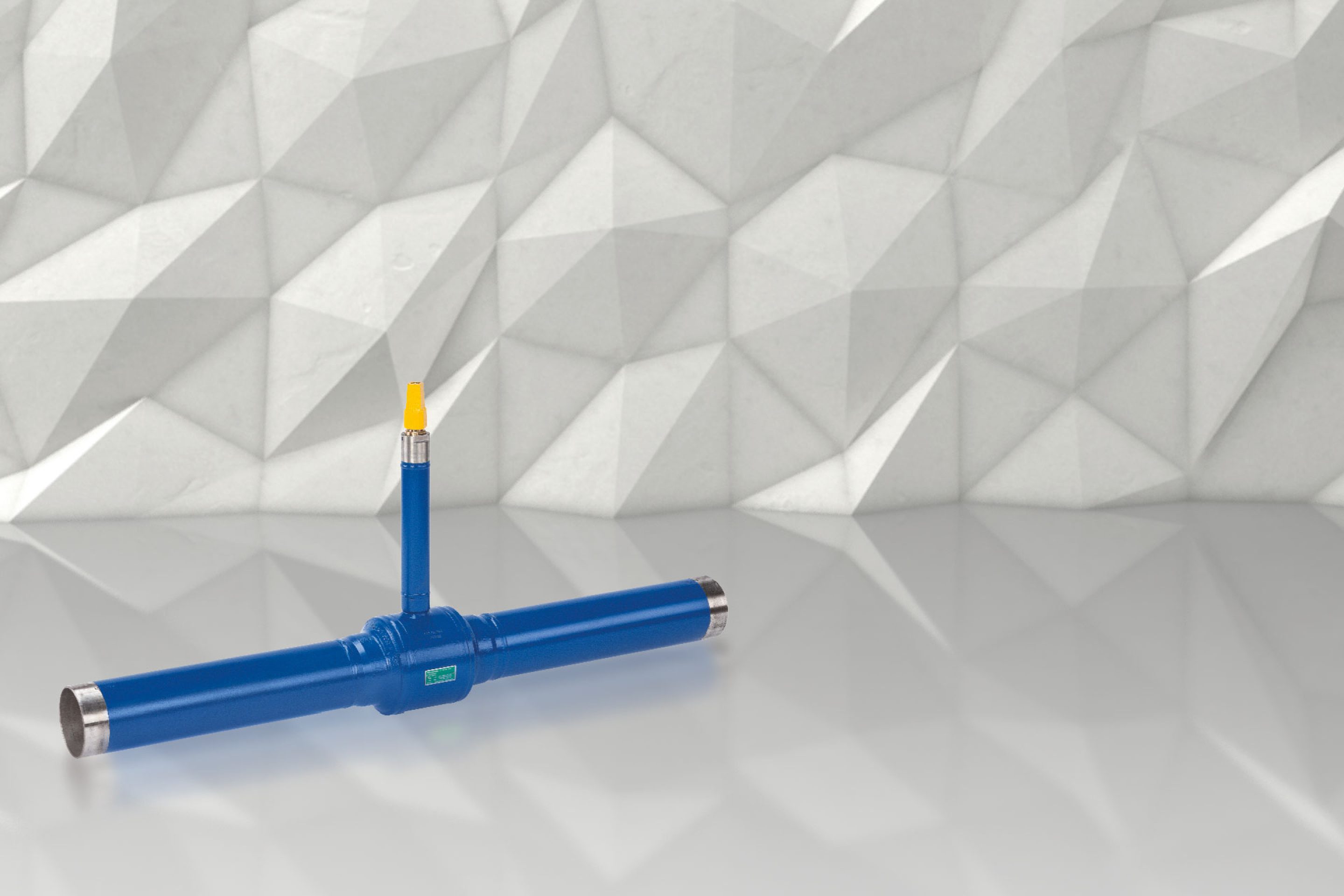

Underground ball valve with weld ends
  • Ball valves comply with EN 488 standard suitable for cold installation

  • Operating temperature up to +150° C

  • The square key is included in the delivery.

  • Underground ball valves are supplied unpainted as standard.


    • From DN 150:
  • A Trunnion mounted ball is standard

    • Werkstoffe

    BodyForged steel / steel
    BallStainless Steel
    Ball sealsPTFE
    Stem sealsEPDM

    Optionen

  • Additional extensions for adjusting the overlap height and other accessories can be found on the supplementary sheet: “Accessories for buried ball valves”.

  • For deviating operating conditions, please enquire in writing, stating medium, pressure and operating temperature.

    • Werte, Maße & Gewichte

    DN/LW [mm] PN [bar] DA [mm] s* [mm] L [mm] L1 [mm] B [mm] H2 [mm] SW 1 [mm] Gewicht [kg] Art.-Nr.
    25/20 25 33.7 2.3 1500 715 44 462 16 7.0 076.0143
    32/25 25 42.4 2.6 1500 715 54 465 16 9.0 076.0108
    40/32 25 48.3 2.6 1500 712 64 488 16 11.0 076.0112
    50/40 25 60.3 2.9 1500 710 76 493 16 12.5 076.0045
    65/50 25 76.1 2.9 1500 705 89 501 16 17.0 076.0047
    80/65 25 88.9 3.2 1500 694 121 515 16 22.0 076.0049
    100/80 25 114.3 3.6 1500 688 140 549 22 30.0 076.0080
    125/100 25 139.7 3.6 1500 680 171 562 22 39.5 076.0097
    150/125 25 168.3 4.0 1500 667 203 581 22 51.3 076.0104
