BBF

FSL/V-HS

DN 10 – DN 100 | PN 25

Full bore

Information

Ball Valve with Weld Ends
/// Operating temperature up to +150° C
/// Flange drilled and dimensioned according to EN 1092 – pressure rating PN 25. Flange dimensions: see supplementary sheet

Werkstoffe

BodyForged steel / steel
BallStainless Steel
StemStainless Steel
Ball sealsPTFE
Stem sealsEPDM

Optionen

Werte, Maße & Gewichte

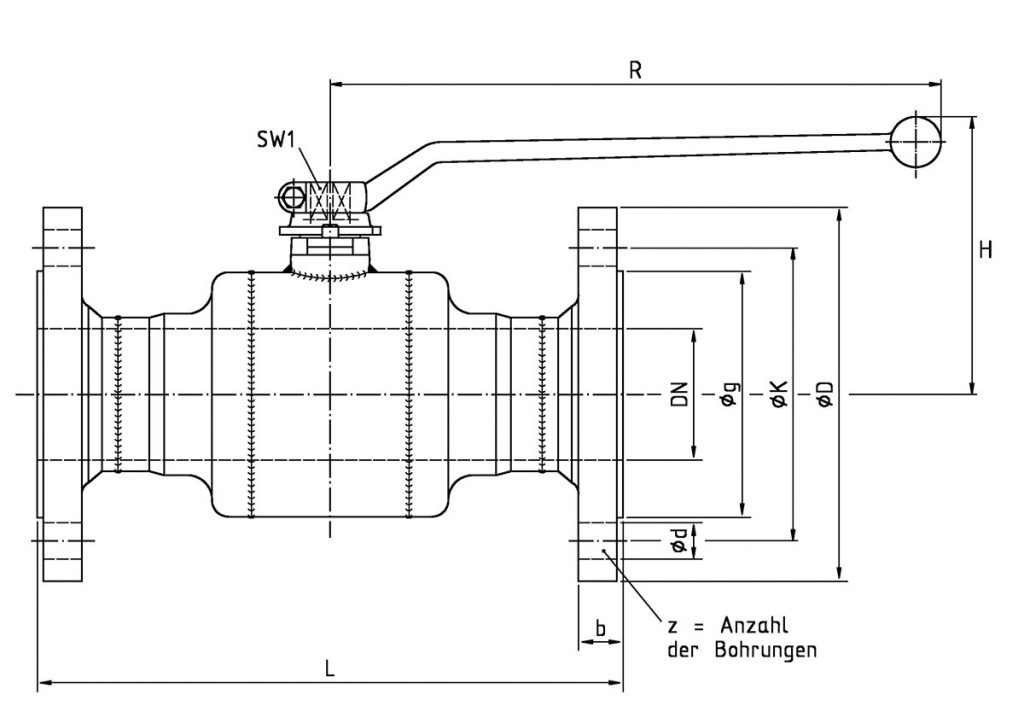

DN [mm] PN [bar] L [mm] D [mm] SW1 [mm] R [mm] H [mm] Gewicht [kg] Art.-Nr.
10 25 130 90 10 160 97 2.0 017.6875
15 25 130 95 10 160 99 2.2 017.6145
20 25 150 105 10 160 102 3.0 017.3007
25 25 160 115 12 180 103 3.5 017.2924
32 25 180 140 16 205 120 7.0 017.2925
40 25 200 150 16 205 125 7.5 017.3238
50 25 230 165 16 205 133 11.0 017.3522
65 25 290 185 16 300 137 18.5 017.3645
80 25 310 200 22 350 156 27.0 017.0742
100 25 350 220 22 350 170 35.0 017.2803
